| Business Type | Manufacturer, Exporter, Supplier |
| Application | Designed For Demanding UAV Applications |
| Material | Aluminium Alloy Casing |
| Brand Name | Bharath |
| Click to view more | |
Product Details
Country of Origin
India
Power Rating
40A Continuous, 60A Peak
Waterproofing
IP-rated Waterproofing
Purpose
Essential Power Hub For Seamless Flight
Functionality
Precise Motor Control For Agile Maneuvers
Features
Reliable Voltage Regulation, Vigilant Current Monitoring, Protective Safeguards
Compatibility
Tailored For Specific Drones
Durability
Built To Withstand Flight Challenges, Ensuring Reliability
Firmware
Advanced For Smooth Throttle Response & Efficient Motor Control
After-sales Support
Strong After-sales Support
Presence
PAN-India Presence
Cost
Competitive Costs
Drive
Drive India’s Drone Ecosystem Forward
MCU
STM32F405
Max. Current
40A Max
Max. Input Voltage
60V
Drive Mode
FOC (sinusoidal)
PWM Input Signal
3.3V/5V
Communication Ports
USB, CAN
Operating Voltage
6s
Design
3 Phase Shunnt
Isolation
Throttle
IP Rating
IP67
Operating Temperature
-40℃~+85℃

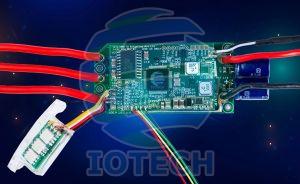

IoTech Electronic Speed Controllers (ESCs) are designed to complement BLDC motors, delivering efficient power management, precision, and reliability for DGCA-approved drones. Made in India, these ESCs ensure smooth motor operation and durability through rigorous testing. As a local manufacturer, we offer high-quality products at competitive costs, backed by strong after-sales support and a PAN-India presence to drive India’s drone ecosystem forward.
- High-performance ESC for demanding UAV applications.
- 40A continuous, 60A peak current capability for powerful motors.
- Advanced firmware for smooth throttle response & efficient motor control.
- Rugged design with aluminium alloy casing & IP-rated waterproofing.
- Purpose: Essential power hub for seamless flight
- Functionality: Precise motor control for agile maneuvers
- Features: Reliable voltage regulation, vigilant current monitoring, protective safeguards
- Compatibility: Tailored for specific drones to ensure optimal performance
- Durability: Built to withstand flight’s challenges, ensuring long-lasting reliability
Additional Information
Stable supply
It maintains a stable power supply, preventing fluctuations that could affect the drone’s operation.
Consistent performance
The ESC ensures reliable and consistent operation of the drone’s systems.
Overcurrent protection
ESCs often have built-in overload protection to prevent damage to the motors and other components.
Flexibility
It can often be customized to fit different drone configurations.
Compact Size
Their compact size allows for efficient use of space within the drone’s frame.
